Computer Softphone User Guide

  • Updated

INSTALLING THE SOFTPHONE

  1. Download the softphone by going to one of these links:
    PC:      https://dashboard-app.s3.us-west-2.amazonaws.com/Softphone/HelloSpoke_6.5.5.2_113660.msi
    MAC: https://dashboard-app.s3.us-west-2.amazonaws.com/Softphone/HelloSpoke_6.5.5.2_113661.dmg
  2. Double click the installer, accept the end-user license agreement, and the installation will begin.
  3. Follow the installation instructions on the screen.
  4. After the installation has completed, open the application. You will be asked to provide the following information:
    • Username: [see admin]
    • Password: [see admin]

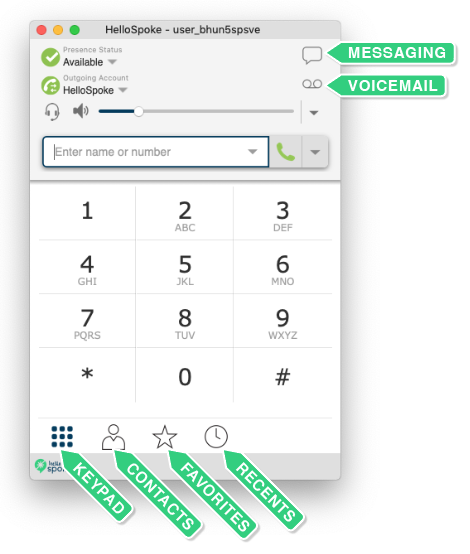

GET TO KNOW YOUR PHONE

BASIC CALL HANDLING

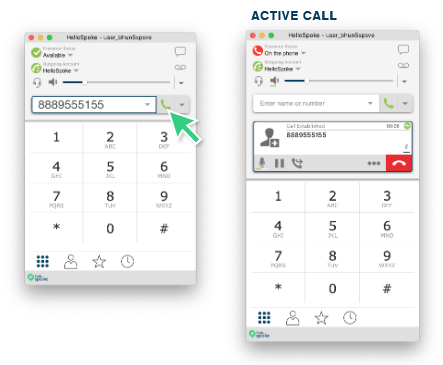

 Dialing

Three ways to dial:

  1. Type the number using your keyboard
  2. Select the numbers using your mouse
  3. Select a person or number directly from your contacts, favorites, or recent calls

Click the green phone button to call out. Click the red phone button to end a call.



Mute

Click the microphone icon to mute the microphone on your phone. You will continue to hear the call. The microphone will have a red slash through it to indicate the call is muted. To unmute, click the microphone a second time.



Hold

Click the pause icon to place a call on hold. The caller will hear on-hold music.
To remove the call from hold, click the play icon.

Transfer

Click the transfer icon to initiate a transfer.

Enter the number to which you want to transfer (internal extension or external number).

  • Blind transfer – click the Transfer Now button.
    This process will initiate an unannounced transfer. Once you click the Transfer Now button, the call will be released from your phone and be transferred to the destination phone. You will not be able to retrieve the call once it has transferred.
  • Announced transfer – click the down arrow and select Call First.
    For an announced transfer, allow the call to ring to the destination phone (do not touch the transfer button again). Once the call is answered, verify that the call is ready to be transferred, then click the transfer icon again. If the transfer needs to be canceled (no answer/receiving user not able to receive the transfer), click the X to cancel the transfer.

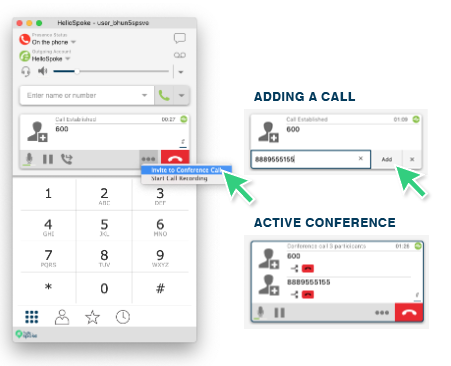

Initiating a 3-party conference call

  1. While a call is active, click the three dots and select Invite to a Conference Call.
  2. Dial the number (internal or external) to be conferenced into the call and click Add. If you need to cancel, click the X.
  3. Once you click Add, the 3rd party will be brought into the original call.
  4. Managing the conference: the arrows icon allows you to separate the calls while the red phone button next to each call allows you to end the call with that specific person.



Availability

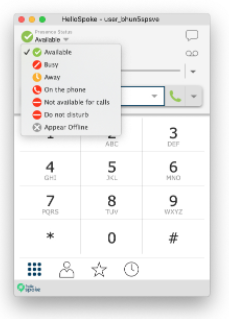

You have seven presence options. Other employees using their softphone will be able to see your status.

Presence status options:

  1. Available
  2. Busy
  3. Away
  4. On the phone
  5. Not available for calls – you will not receive alerts for calls
  6. Do not disturb – you will not receive alerts for calls or messages
  7. Appear offline



Messaging

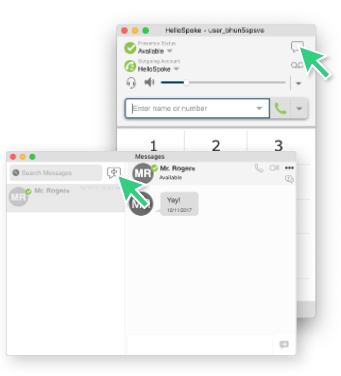

You are able to message between employees that have their softphone open by clicking the message icon on the phone.

A messenger box will then open separately, you can add new conversations by clicking the plus sign icon at the top.

Speakerphone

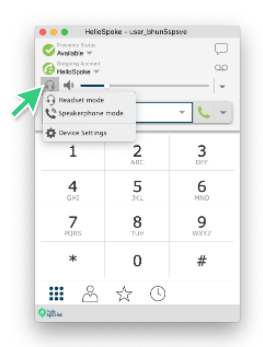

You can change the audio output by clicking the headset icon and selecting headset or speakerphone.




VOICEMAIL

To access the voicemail system

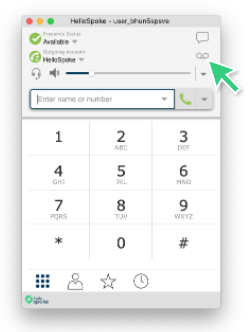

To listen to voicemail and manage your voicemail options, click the voicemail icon (a *98 will appear in the digit field).



Setting up your voicemail
(skip this step if you’ve already set up your voicemail on another device)

  1. Click the voicemail icon on the phone.
  2. Follow voice prompts to setup voicemail features.



Editing voicemail settings

  1. Click the voicemail icon on the phone.
  2. At voice prompt, press 5 (change settings)
    • Press 1 to record personal greeting
    • Press 2 to record name
    • Press 3 to change password



Using a temporary greeting (out-of-office greeting)

  1. Click the voicemail icon on the phone.
  2. At voice prompt, choose 5 (change settings).
    • Press 4 to record a temporary greeting
    • Press 5 to restore permanent greeting



Accessing voicemail system remotely

  1. From an outside phone (not a hellospoke phone), call your DID (or dial your main number and access
    your extension through your auto-attendant).
  2. When you hear your personal voicemail greeting, press *.
  3. When prompted for you password, enter it followed by #.
  4. At this point, you will have access to your personal voicemail features. This will allow you to retrieve
    messages and access all voicemail features.

NOTE: In addition to receiving your voicemail messages on your phone and using the procedures listed above to retrieve them, you will also receive your voicemail via an email with a recording of the voicemail attached as a .wav file. In order to delete the voicemail from the system, you must use your phone (or remote access). Deleting the email with the attached voicemail recording will not delete the voicemail from the system.
